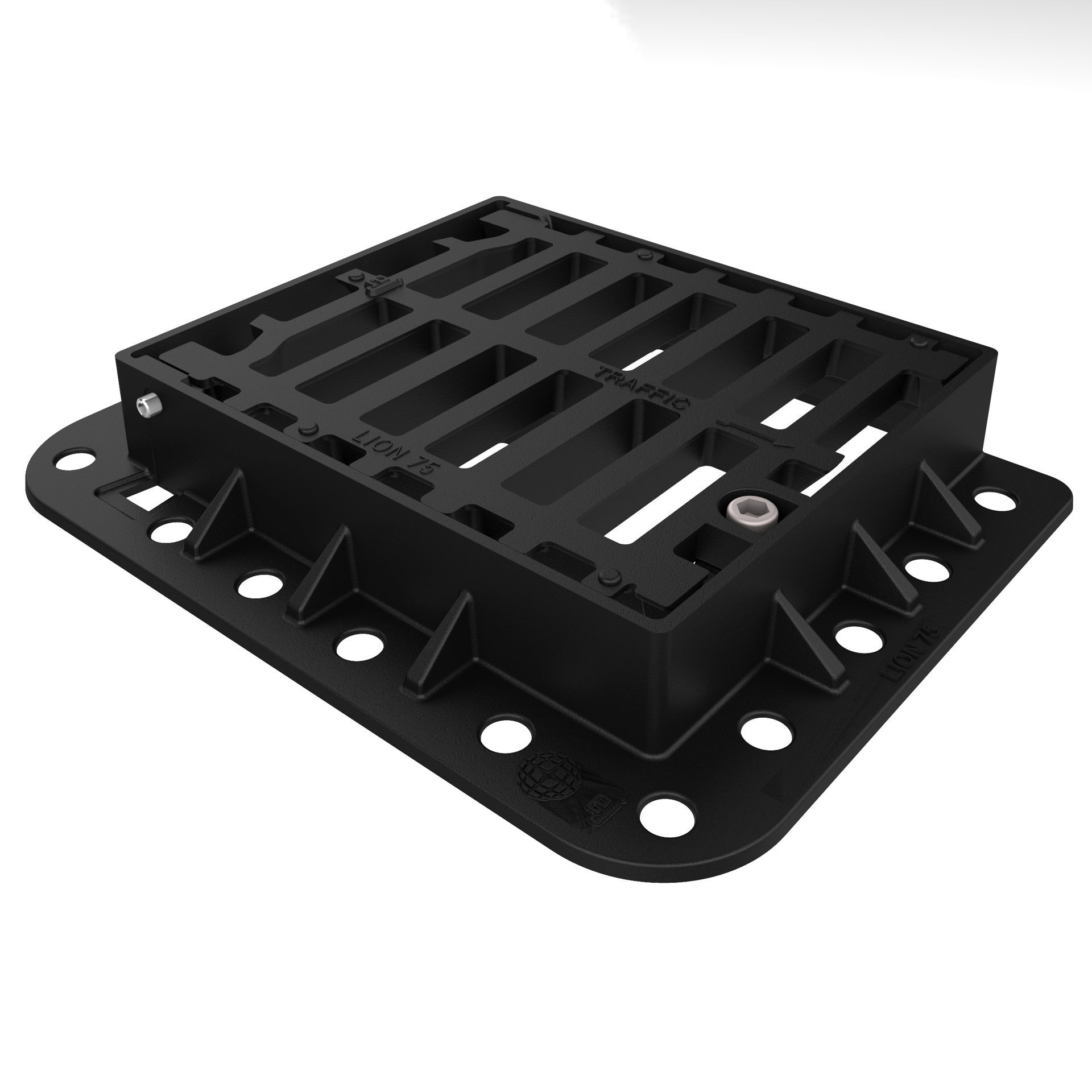

Lion Grating 365X310 75Bd 75H C250 Locked

EJ Lion D.I. Grating 365X310 75H C250 Locked is an end hinged ductile iron grating and frame with a lockable grating. The frame is 3 sided frame and flat. The grating has a C250 rating and is suitable for use as a kerbside channels of roads. The grating has an open area of 365mm x 310mm.
Availability: In stock
SKU: MHA0118
€90.21 incl vat

EJ Lion D.I. Grating 365X310 75H C250 Locked is an end hinged ductile iron grating and frame with a lockable grating. The frame is 3 sided frame and flat. The grating has a C250 rating and is suitable for use as a kerbside channels of roads. The grating has an open area of 365mm x 310mm.

  • For gully tops installed in the area of kerbside channels of roads which when measured from the kerb edge, extend a maximum of 0,5m into the carriageway and a maximum of 0,2m into the footway.
  • C250 loading class
  • BS EN124 accredited
  • Includes frame
  • Lockable Grating (with M16 bolt)
  • Clear opening 365mm x 310mm
  • External Dimensions 510 (L) x 400 (W) x 75 (H)

EJ Lion D.I. Grating 365X310 75H C250 Locked is an end hinged ductile iron grating and frame with a lockable grating. The frame is 3 sided frame and flat. The grating has a C250 rating and is suitable for use as a kerbside channels of roads. The grating has an open area of 365mm x 310mm.

  • For gully tops installed in the area of kerbside channels of roads which when measured from the kerb edge, extend a maximum of 0,5m into the carriageway and a maximum of 0,2m into the footway.
  • C250 loading class
  • BS EN124 accredited
  • Includes frame
  • Lockable Grating (with M16 bolt)
  • Clear opening 365mm x 310mm
  • External Dimensions 510 (L) x 400 (W) x 75 (H)
*
*
*
*
